• Suitable for a wider range of workpiece sizes and shapes through expanded machining area and Y-axis travel.
• Equipped with a high-precision built-in motor turning spindle.
• Optional second spindle and lower turret configurations are available for process consolidation.
• Equipped with a front-mounted tool magazine, suitable for tool preparation for a variety of workpieces.
A multi-functional machining center that achieves high-efficiency and high-precision processing by integrating production processes.
• Features a compact, interference-suppressing milling spindle design and offers multiple size options.
• Suitable for a wider range of workpiece sizes and shapes through expanded machining area and Y-axis travel.
• Equipped with a high-precision built-in motor turning spindle.
• Optional second spindle and lower turret configurations are available for process consolidation.
• Equipped with a front-mounted tool magazine, suitable for tool preparation for a variety of workpieces.
Easy to
Operate
High
Productivity
Excellent
Machining
Capability
Easy
Maintenance
Highlights

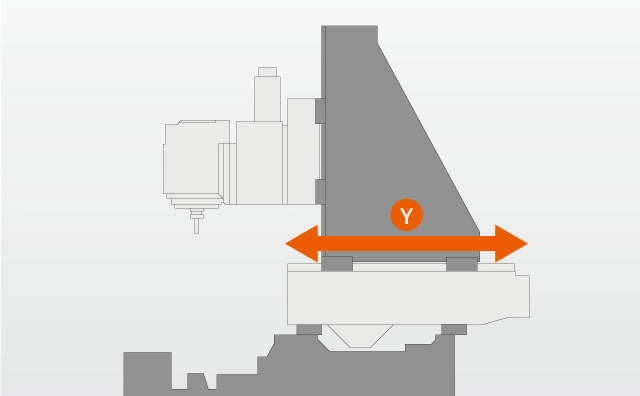

Based on structural analysis, a completely new mechanical structure was designed, combining the advantages of turning centers and machining centers, to achieve long-term stable high-precision machining. High positioning accuracy and high machining accuracy are achieved throughout the entire Y-axis travel range.

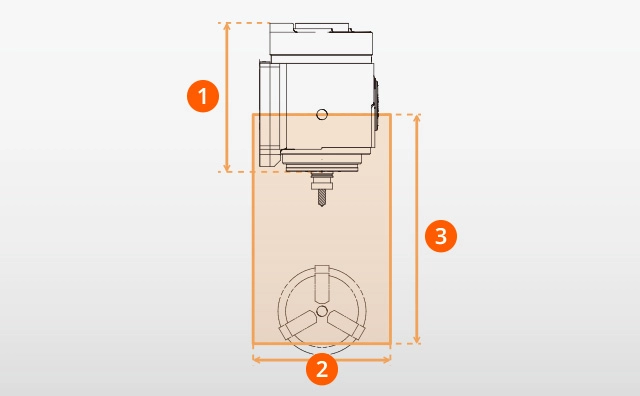

The compact milling spindle, which reduces interference with the workpiece, ensures a larger machining area.
• 1: 430 mm
• 2: Y-axis 300 mm (i-250 NEO, i-350 NEO, i-450 NEO series)
Y-axis 210 mm (i-100 NEO, i-200 NEO series)
• 3: X-axis 695 mm (i-250 NEO, i-350 NEO, i-450 NEO series)
X-axis 535 mm (i-100 NEO, i-200 NEO series)

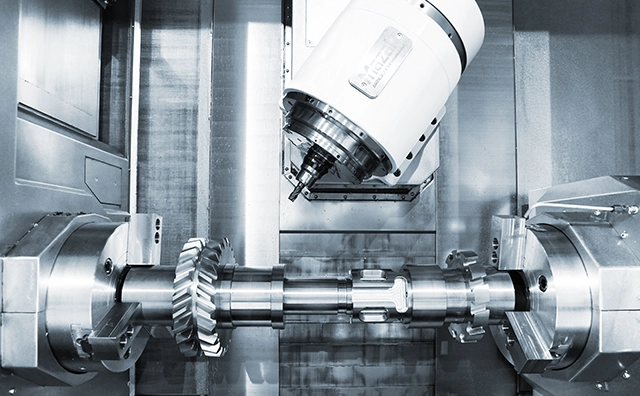

Equipped with a milling spindle that supports automatic tool change (ATC). The compact design minimizes interference and expands the machining area. The 12000 min-1 spindle allows for efficient machining of steel and castings. An optional 20000 min-1 spindle is available, specifically designed for high-speed machining of aluminum and small-diameter workpieces. Multiple spindle specifications are available to meet different production needs.
