INTEGREX i-H

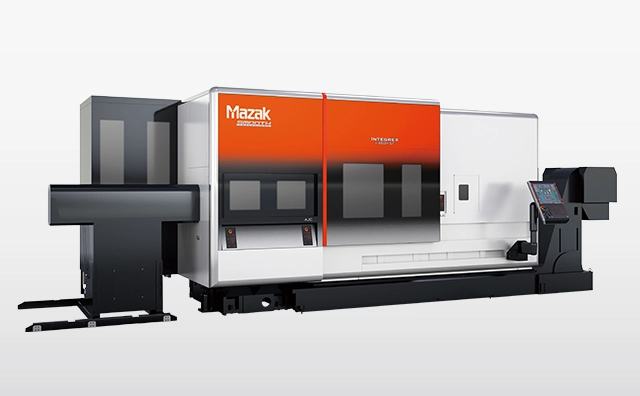

Next-generation multi-functional machining center

• The machine body features a flat design on the front, facilitating the installation of automation options (such as articulated robots and stackers).

• High-power spindle and high-rigidity machine tool structure.

• Long Y-axis travel, expanding workpiece processing capabilities.

• Equipped with the MAZATROL SmoothAi CNC system, supporting AI, digital twin, and automation.

Easy to Operate

Easy to

Operate

High Productivity

High

Productivity

Excellent Machining Capability

Excellent

Machining

Capability

Easy Maintenance

Easy

Maintenance

Highlights

详情（可实现高精度加工的机械构造）@1x

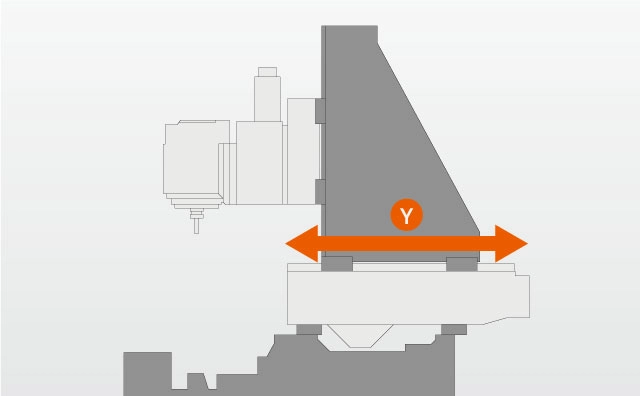

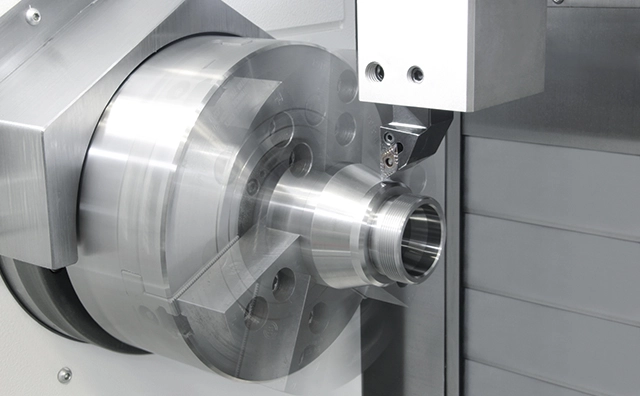

Mechanical structures capable of achieving high-precision machining.

Based on structural analysis, we designed an optimal mechanical structure combining a turning center and a machining center to achieve long-term stable high-precision machining. High-precision machining is achievable throughout the entire Y-axis travel range.

Automated systems suitable for different products and production volumes.

A bar stock conveyor system can be installed to supply bar materials. The scheduling function of the bar stock conveyor (optional) supports variable production and complete set production.

详情（适用于不同产品和产量的自动化系统）@1x

详情（热变位控制）@1x

Thermal displacement control

• Spindle Temperature Control

Temperature-controlled cooling oil circulates within the spindle bearings and the outer casing of the drive motor,

suppressing thermal deformation of the spindle and preventing a decrease in machining accuracy.

• X, Y, and Z Axes: Ball Screw Shaft Cooling as Standard

Temperature-controlled cooling oil flows inside the ball screws, suppressing heat generation and preventing a decrease in machining accuracy.

Product Specifications


modelINTEGREX i-100HINTEGREX i-200HINTEGREX i-250HINTEGREX i-350HINTEGREX i-450H
CAPACITY
Chuck size6inch8inch8inch10inch12inch
Max. Turning Diameter600mm600mm600mm670mm670mm
Max. Turning Length590mm590mm1011/1519mm1011/1519/2500mm1011/1519/2500mm
TRAVELS
X-Axis Travel Distance535mm535mm695mm695mm695mm
Y-Axis Travel Distance210mm210mm300mm300mm300mm
Z-Axis Travel Distance640mm640mm1077/1585mm1077/1585/2566mm1077/1585/2566mm
B-Axis Travel Distance-30° - +210°-30° - +210°-30° - +210°-30° - +210°-30° - +210°
X-Axis Rapid Traverse48m/min48m/min50m/min50m/min50m/min
Y-Axis Rapid Traverse40m/min40m/min40m/min40m/min40m/min
Z-Axis Rapid Traverse40m/min40m/min50m/min50/50/40m/min50/50/40m/min
MAIN SPINDLE
Max. Spindle Speed6000r/min5000r/min5000r/min4000r/min3300r/min
Max. Spindle Power7.5/11kw15/22kw15/22kw22/30kw30/37kw
Milling spindle
Max. Spindle Speed12000r/min12000r/min12000r/min12000r/min12000r/min
Max. Spindle Power11/12kw11/12kw22/24kw22/24kw22/24kw
Max. Spindle Torque46.1/57.3N·m46.1/57.3N·m91.3/124N·m91.3/124N·m91.3/124N·m
TURRET
No. of tool station38ea38ea38ea38ea38ea
DIMENSIONS
Length3415mm3505mm4175/4995mm4175/4995/6070mm4175/4995/6070mm
Height2250mm2250mm2715mm2715mm2715mm
Width2170m2170mm2700mm2700mm2700mm
Weight9930kg10780kg13150/14450kg13450/14750/17100kg13750/15050/17400kg

Message

Submit
