MY-TURN GT42 52

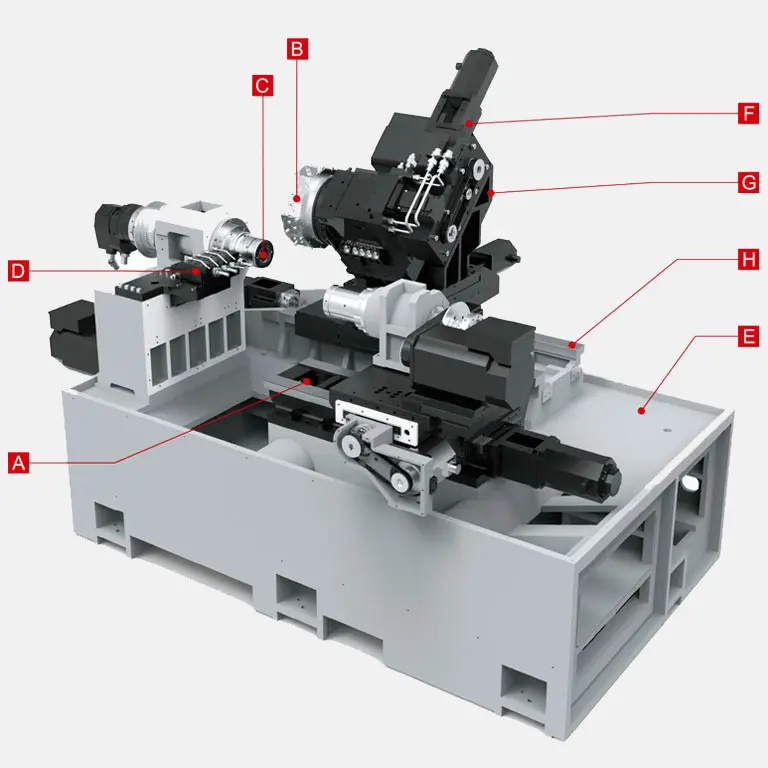

Dual spindle, single Y-axis, single turret CNC turning and milling machine
Multiple features: The machine is equipped with dual spindles, a 12-position BMT tool turret, and a comb-type tool holder, providing cost-effective machining capabilities. Through a dual-system cutting process, it can accurately and efficiently process workpieces with complex shapes, achieving production targets within a very short production cycle.
Easy to
Operate
High
Productivity
Excellent
Machining
Capability
Easy
Maintenance
Highlights

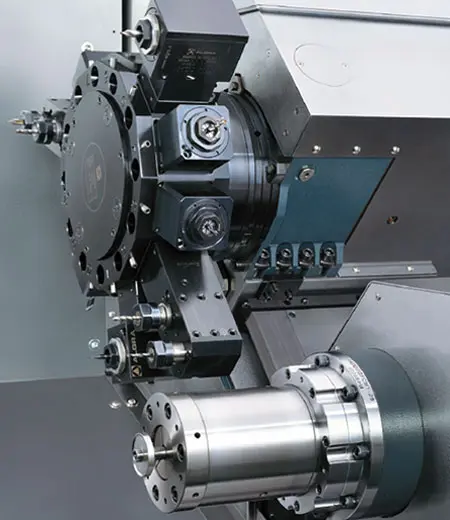

SAUTER BMT 45/VDI 30 powered tool turret (Y1 axis)
Maximum capacity of 24 tools - equipped with the German Schütte tool turret brand, the 12 tool holders can achieve the cutting performance of up to 24 tools, suitable for heavy cutting and continuous machining modes. The tool turret features a half-angle tool change mode, providing the cutting performance of 24 tools and enabling a fast tool change in 0.2 seconds.
The Fanuc Alpha 2 6000 rpm servo motor can easily handle difficult-to-machine materials.
20 Bar high-pressure cooling system provides fast chip removal and a long service life. (Pressure options of 50 or 100 bar are available)
Y1 axis travel: +/- 35mm

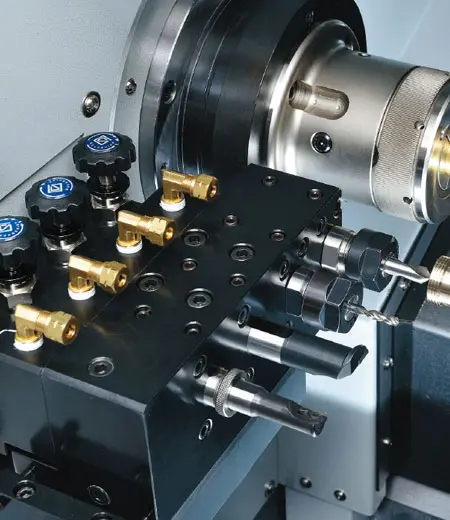

Machining of the rear end of the cutting tool
The comb-type tool holder can accommodate four tools and allows for complex contour machining of the workpiece's rear end, significantly reducing overall processing time.
The dual-system cutting design increases productivity and shortens production cycles.
