The Y-axis can perform side milling, drilling, and tapping operations.
A2-5 spindle nose.
The 12-position power turret can perform milling, drilling, and tapping operations.
6000 RPM high-speed spindle.
The precision spindle can hold workpieces using collets and three-jaw chucks.
MY-TURN T42 52 60DSY
Both the main spindle and sub-spindle have C-axis functionality.
The Y-axis can perform side milling, drilling, and tapping operations.
A2-5 spindle nose.
The 12-position power turret can perform milling, drilling, and tapping operations.
6000 RPM high-speed spindle.
The precision spindle can hold workpieces using collets and three-jaw chucks.
Easy to
Operate
High
Productivity
Excellent
Machining
Capability
Easy
Maintenance
Highlights

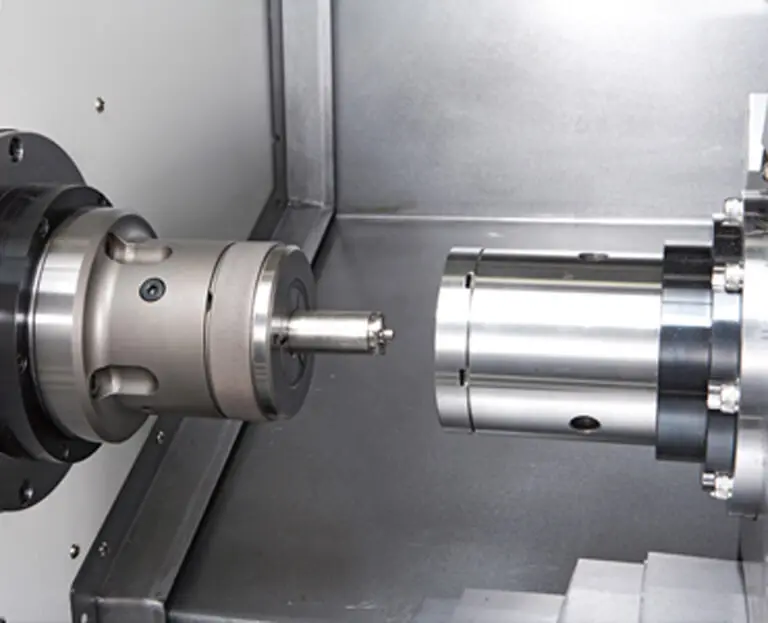

Dual spindles (primary and secondary)
This machine features a main spindle and a sub-spindle, enabling one-time machining of the workpiece before and after the initial machining operation. Because the repetition time between machining operations is reduced, machining accuracy is improved; complex parts only require a single setup. Both the main and sub-spindles have C-axis functionality, with a C-axis positioning accuracy of 0.001 during main spindle machining.

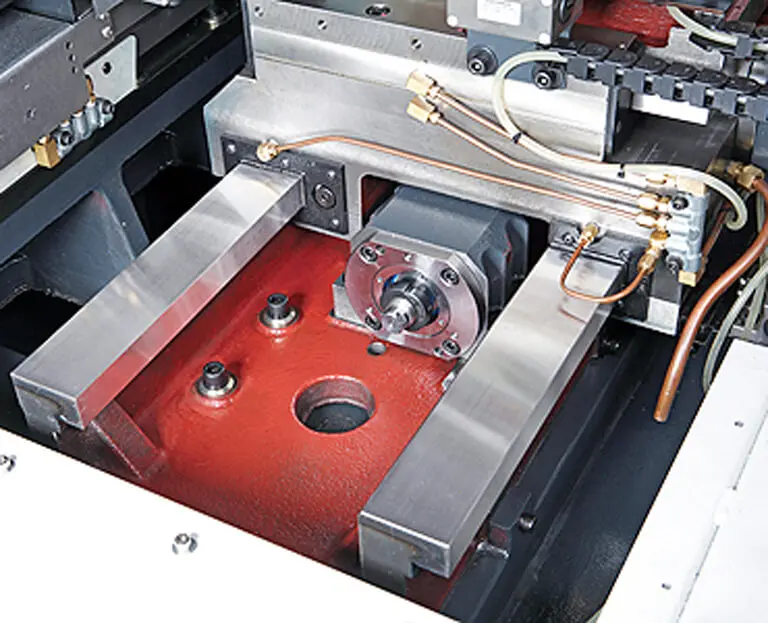

Large-span rigid rail slide
The hard rail guide system, combined with a large span design between the guide rails, provides optimal rigidity and stability. Through special heat treatment and precision grinding, it achieves excellent durability and rigidity.
Power Turret 12T
The power turret is driven by a FANUC servo motor, providing high torque and excellent cutting force. Tool changes are rapid, taking only 0.3 to 0.9 seconds. Combined with C-axis and Y-axis functions, the power turret enables the machine to perform milling, drilling, tapping, and other machining operations. Both VDI30 and BMT45 turret specifications are applicable.
Product Specifications
