QTE
· Built-in motor for high cutting capacity
· Support of a wide range of specifications allows selection of models per production
· A variety of optional automation equipment can be chosen to increase productivity
· In-office digital setup will significantly reduce on-machine work*.
* Only MAZATROL SmoothEz is supported.

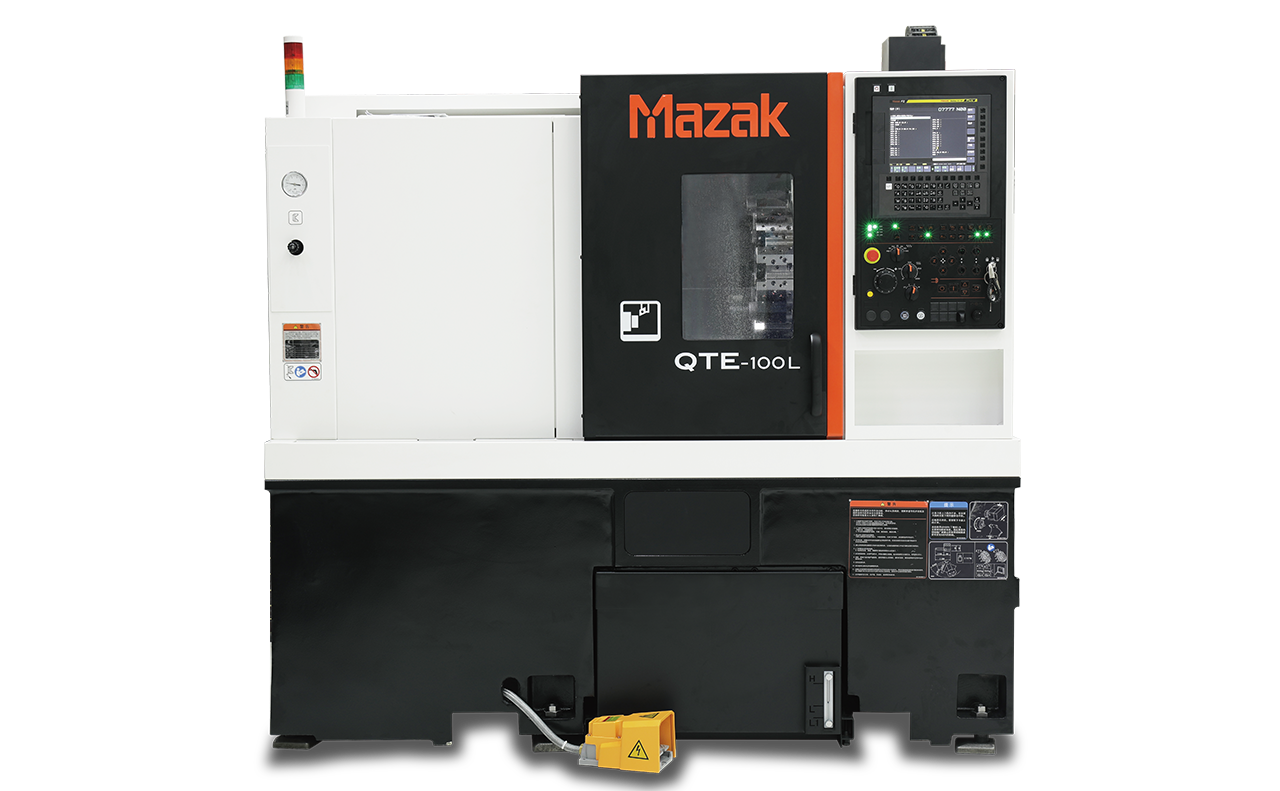

QTE

 High-speed, high-accuracy, space-saving CNC turning centers

· Built-in motor for high cutting capacity

· Support of a wide range of specifications allows selection of models per production

· A variety of optional automation equipment can be chosen to increase productivity

· In-office digital setup will significantly reduce on-machine work*.
* Only MAZATROL SmoothEz is supported.


Easy to Operate

Easy to

Operate

High Productivity

High

Productivity

Excellent Machining Capability

Excellent

Machining

Capability

Easy Maintenance

Easy

Maintenance

Highlights

详情(High cutting capacity & maintenance free)

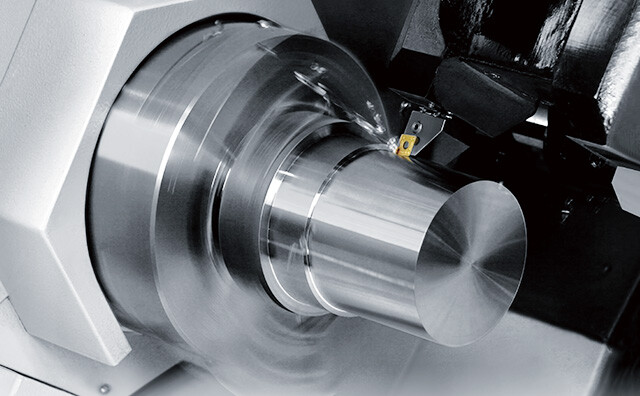

High cutting capacity & maintenance free

The built-in motor spindle of the QTE series is designed to provide high torque even in the low-speed range, resulting in high cutting capacity. It is designed to have less causes of vibration as it has no gears or belts, so better roundness and surface accuracy can be acquired and power loss can be prevented. This simple structure leads to high reliability, as it does not require maintenance such as tension adjustment, which is needed for belt-driven models.

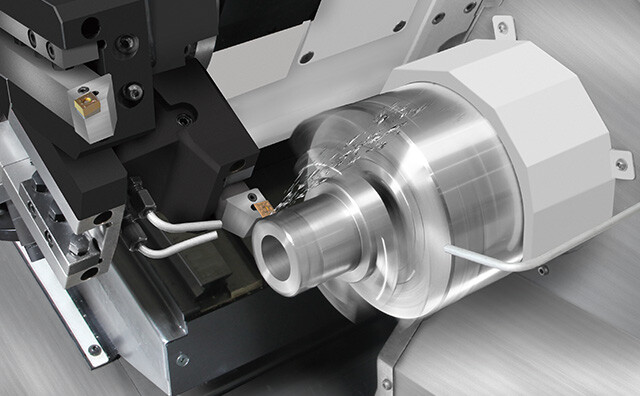

Milling specification

High-accuracy milling available


详情(Milling specification)

详情(Second spindle)

Second spindle

Continuous machining from workpiece delivery to the 2nd process is possible

Product Specifications


modelQTE-100LQTE-200LQTE-300L
CAPACITY
Chuck size6inch8inch10inch
Max. Turning Diameter280mm290mm350mm
Max. Turning Length310mm280/515mm554/1064mm
TRAVELS
X-Axis Travel Distance200mm195mm215mm
Z-Axis Travel Distance340mm325/560mm605/1120mm
X-Axis Rapid Traverse33m/min30m/min30m/min
Z-Axis Rapid Traverse36m/min30m/min30m/min
MAIN SPINDLE
Max. Spindle Speed6000r/min5000r/min4000r/min
Max. Spindle Power11/15kw11/15kw15/18.5kw
Max. Spindle Torque184N·m195N·m340N·m
TURRET
No. of tool station12ea12ea12ea
DIMENSIONS
Length1900mm1900/2200mm2700/3335mm
Height1700mm1700mm1700/1800mm
Width1590mm1590mm1600/1670mm
Weight3500kg3400/3700kg4300/5000kg
