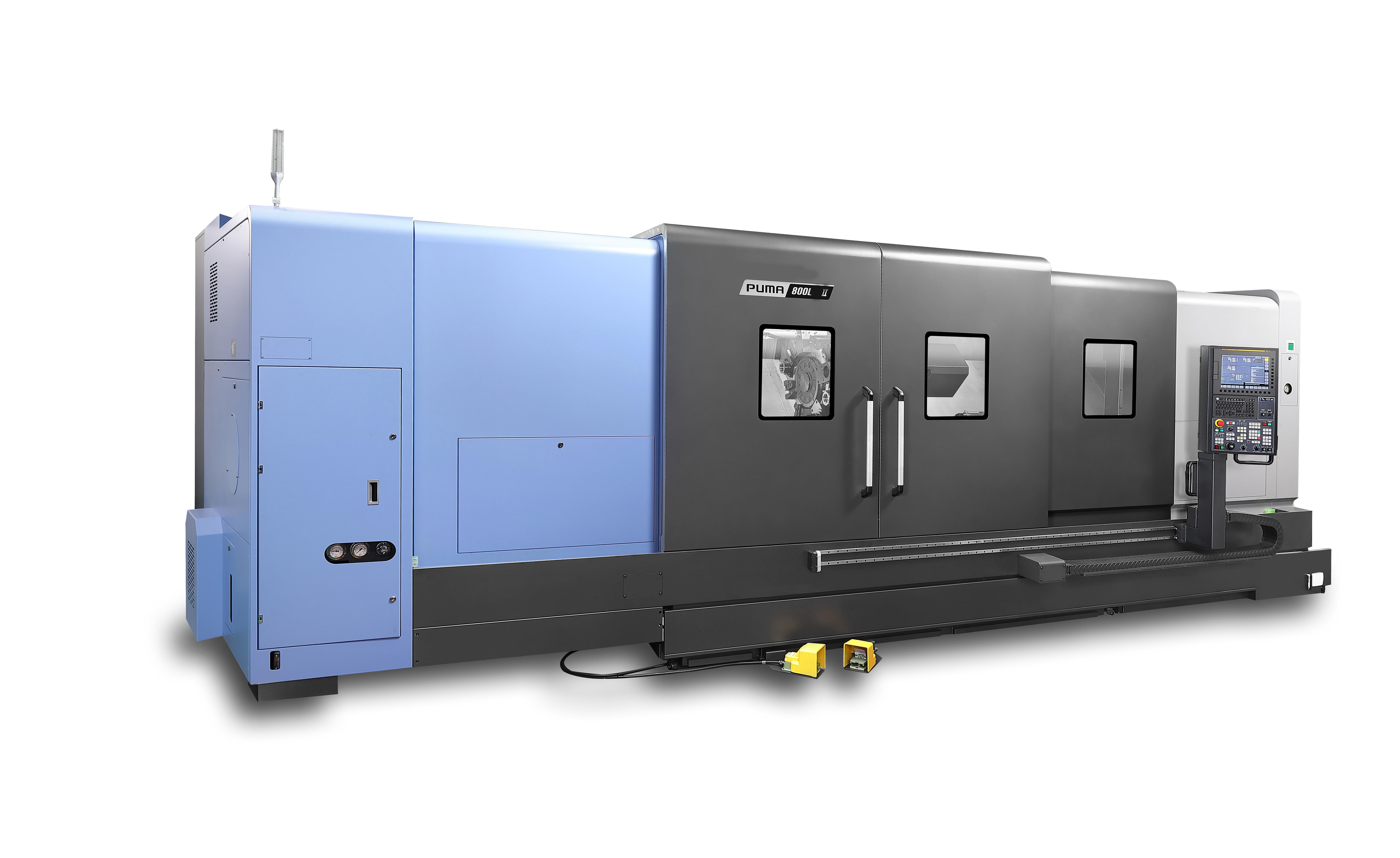

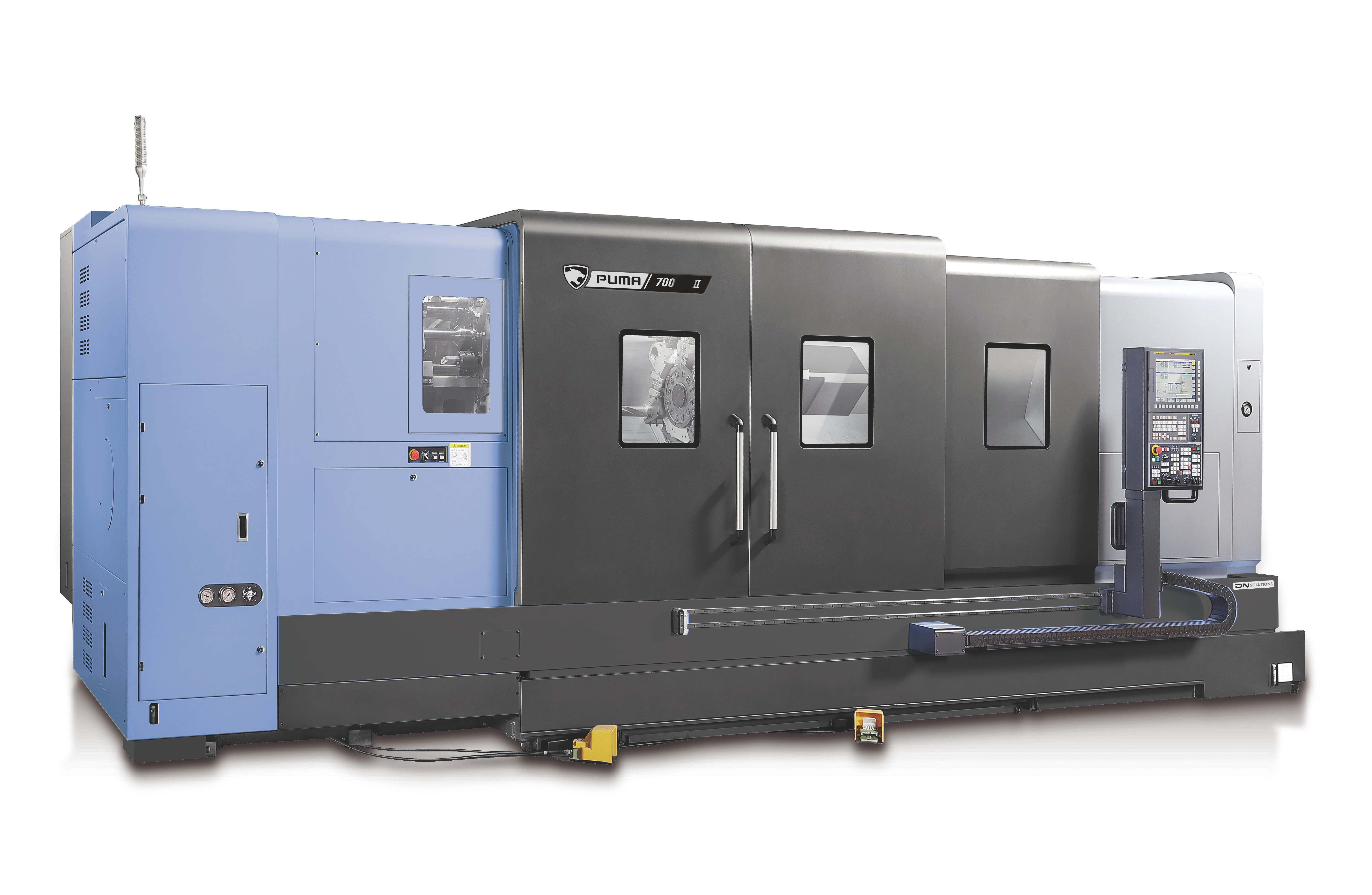

PUMA 600 700 800
High Capacity, Heavy Duty HTC
Featuring the largest work envelopes in their class, the PUMA 600/700/800 II horizontal turning centers are ideal for machining large and complex components for the oil and gas, construction, aerospace and shipbuilding sectors - to name but a few.

PUMA 600/700/800 II series

High Capacity, Heavy Duty HTC

Featuring the largest work envelopes in their class, the PUMA 600/700/800 II horizontal turning centers are ideal for machining large and complex components for the oil and gas, construction, aerospace and shipbuilding sectors - to name but a few.

Easy to Operate

Easy to

Operate

High Productivity

High

Productivity

Excellent Machining Capability

Excellent

Machining

Capability

Easy Maintenance

Easy

Maintenance

Highlights

详情（Single setup for machining large complex parts）

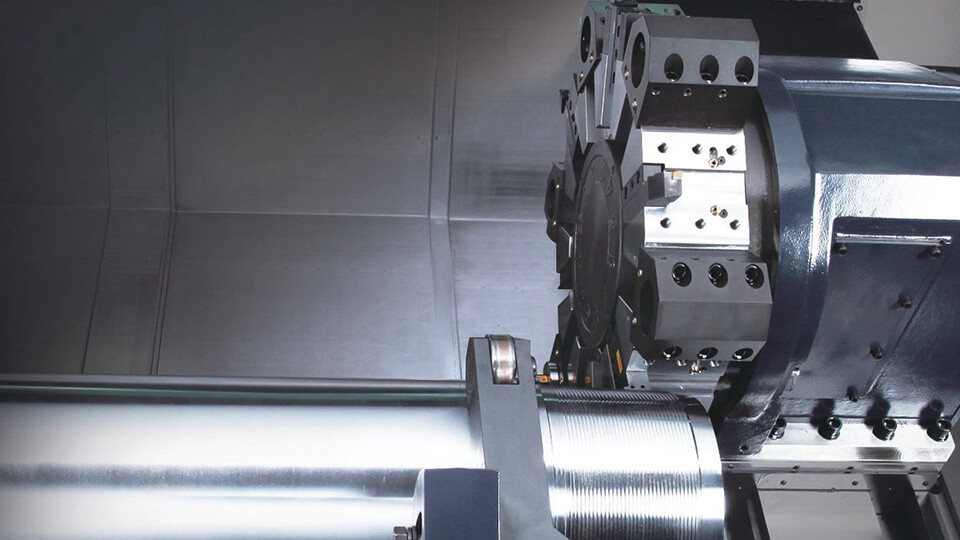

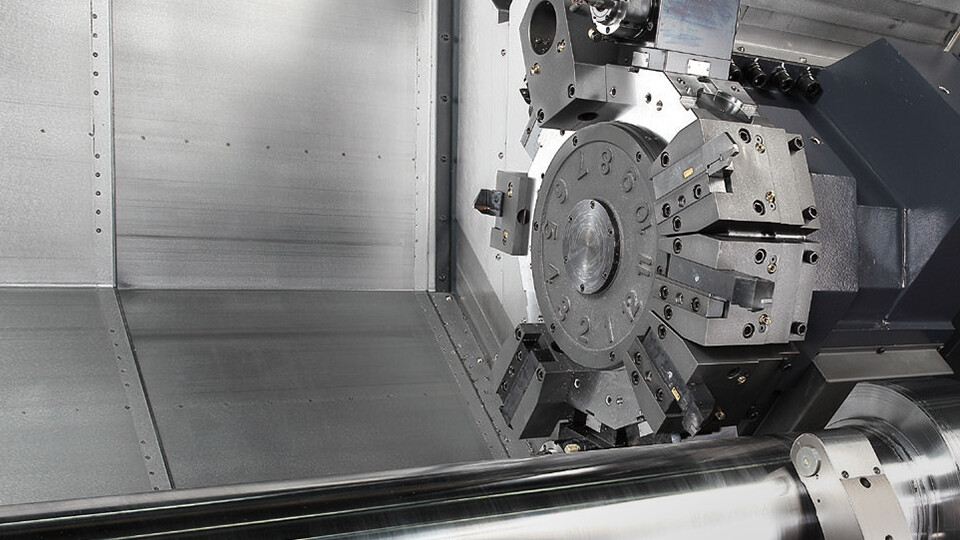

Single setup for machining large complex parts

Maximum productivity can be achieved with the 200mm Y axis stroke

Boasting the largest machining area and the highest levels of performance in their class, PUMA 600/700/800 machines are perfect for machining large workpieces

Max. turning length : 5m

Max. turning diameter : 900 mm

Ideal for heavy-duty cutting of large parts

The machine tool boasts the largest processing area and highest performance among similar products, making it an ideal choice for machining large workpieces.

详情（Machining Solution for wide range of pipes）

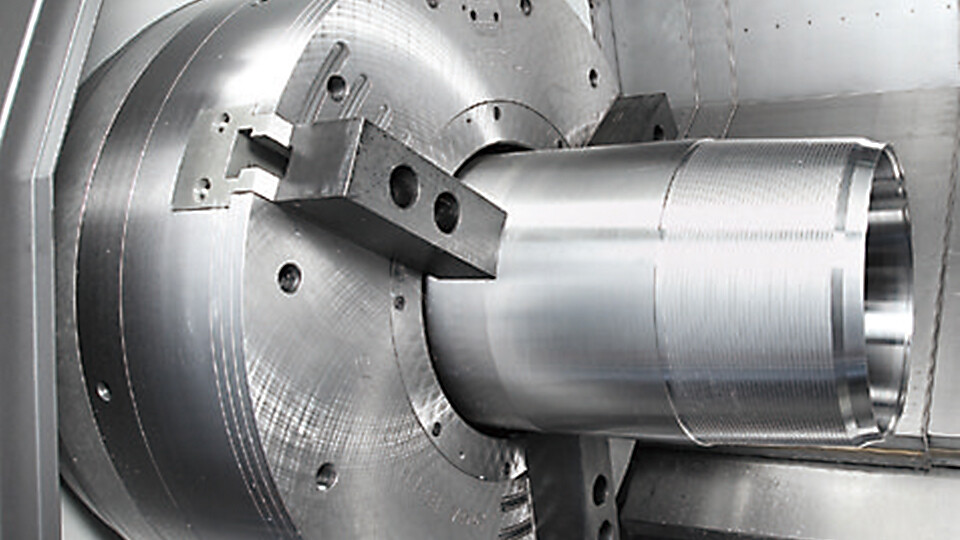

Machining Solution for wide range of pipes

Wide range of solutions to improve threading performance and reduce failure ratios

Ø375 mm maximum spindle through hole diameter makes machines ideal for turning large diameter pipes

Product Specifications


modelPUMA 600PUMA 600LPUMA 600XLPUMA 700PUMA 700LPUMA 700XLPUMA 800PUMA 800LPUMA 800XL
CAPACITY
Chuck size18inch18inch18inch24inch24inch24inch32inch32inch32inch
Max. Turning Diameter900mm900mm900mm900mm900mm900mm900mm900mm900mm
Max. Turning Length1600mm3200mm5050mm1600mm3200mm5050mm1600mm3200mm5050mm
TRAVELS
X-Axis Rapid Traverse12m/min12m/min12m/min12m/min12m/min12m/min12m/min12m/min12m/min
Z-Axis Rapid Traverse16m/min10m/min10m/min16m/min10m/min10m/min16m/min10m/min10m/min
X-Axis Travel Distance470mm470mm470mm470mm470mm470mm470mm470mm470mm
Z-Axis Travel Distance1652mm3235mm5100mm1652mm3235mm5100mm1652mm3235mm5100mm
MAIN SPINDLE
Max. Spindle Speed1800r/min1800r/min1800r/min1500r/min1500r/min1500r/min750r/min750r/min750r/min
Max. Spindle Power55kw55kw55kw55kw55kw55kw55kw55kw55kw
Max. Spindle Torque6622N·m6622N·m6622N·m8076N·m8076N·m8076N·m8076N·m8076N·m8076N·m
TURRET
No. of tool station12ea12ea12ea12ea12ea12ea12ea12ea12ea
DIMENSIONS
Length5756mm7354mm9904mm5756mm7354mm9904mm5756mm7354mm9904mm
Height2800mm2590mm2855mm2800mm2590mm2855mm2800mm2590mm2855mm
Width3160mm2713.5mm2955mm3160mm2713.5mm2955mm3160mm2713.5mm2955mm
Weight16500kg22000kg26000kg16500kg22000kg26000kg16500kg22000kg26000kg
