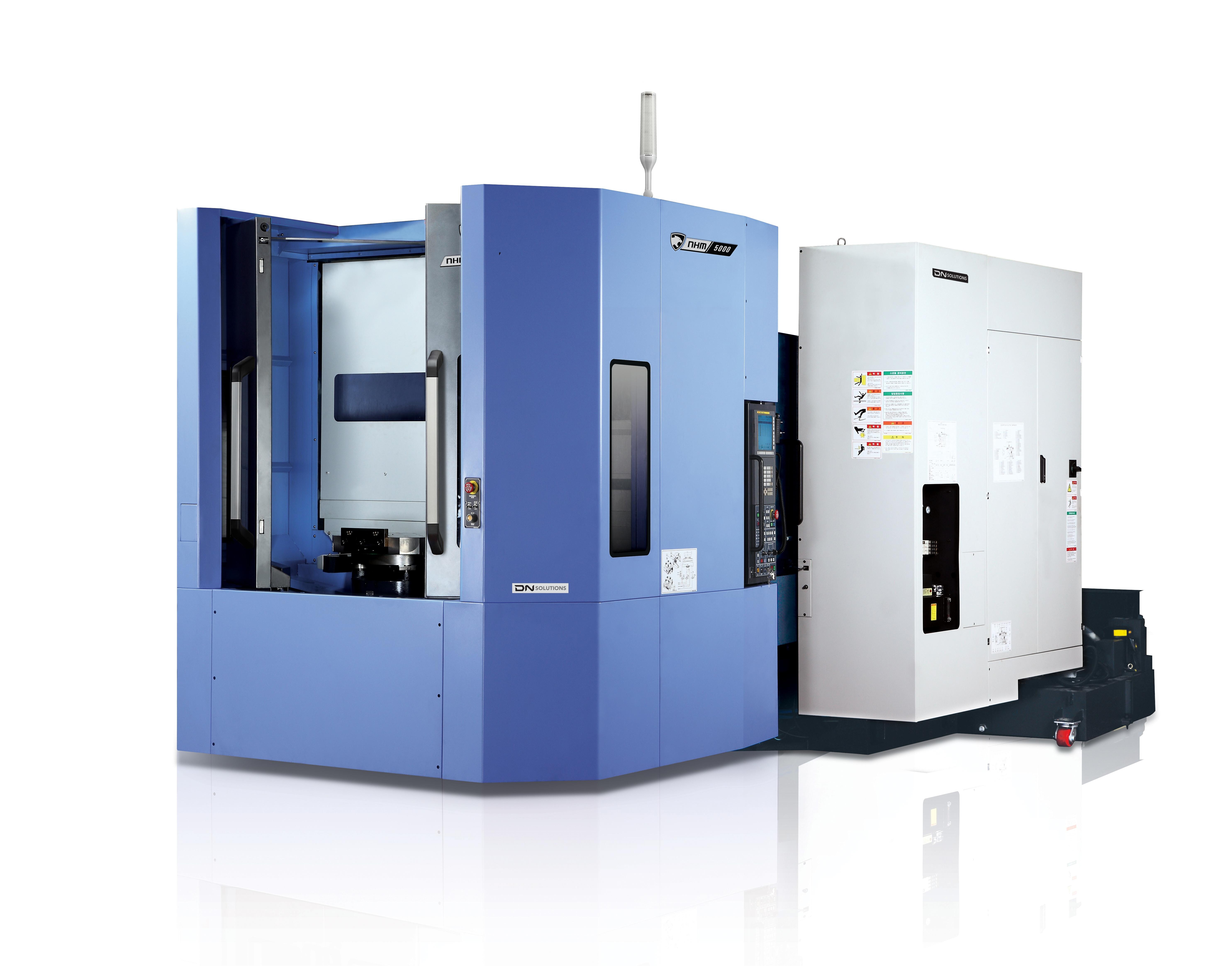

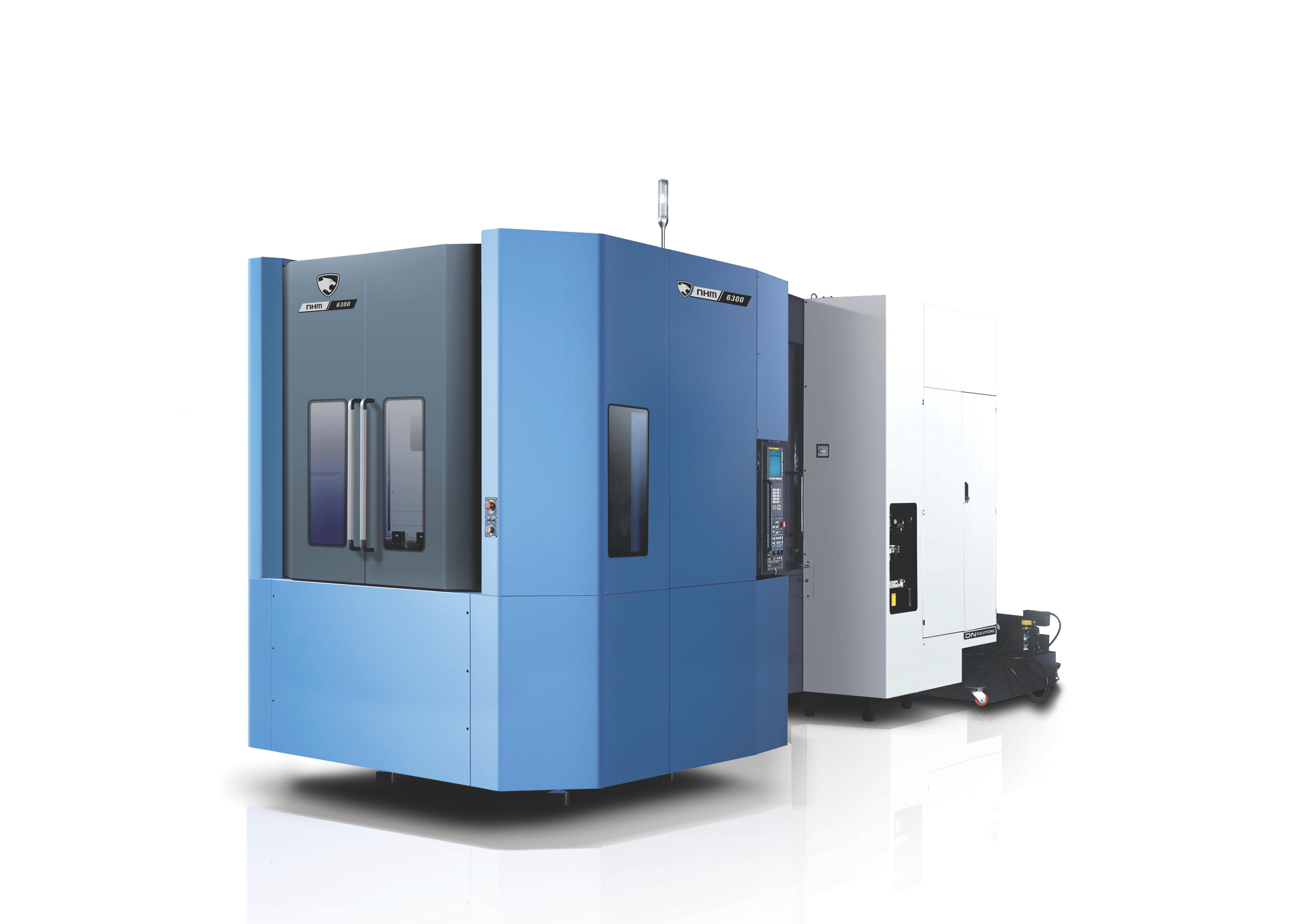

HNM 5000 6300 8000
NHM series
Mid-to-large-sized High Performance Heavy Duty Horizontal Machining Center
NHM horizontal machining centers deliver the power, performance and reliability component manufacturers need for the heavy-duty machining of tough and difficult materials.

NHM series


Mid-to-large-sized High Performance Heavy Duty Horizontal Machining Center

NHM horizontal machining centers deliver the power, performance and reliability component manufacturers need for the heavy-duty machining of tough and difficult materials.


Easy to Operate

Easy to

Operate

High Productivity

High

Productivity

Excellent Machining Capability

Excellent

Machining

Capability

Easy Maintenance

Easy

Maintenance

Highlights

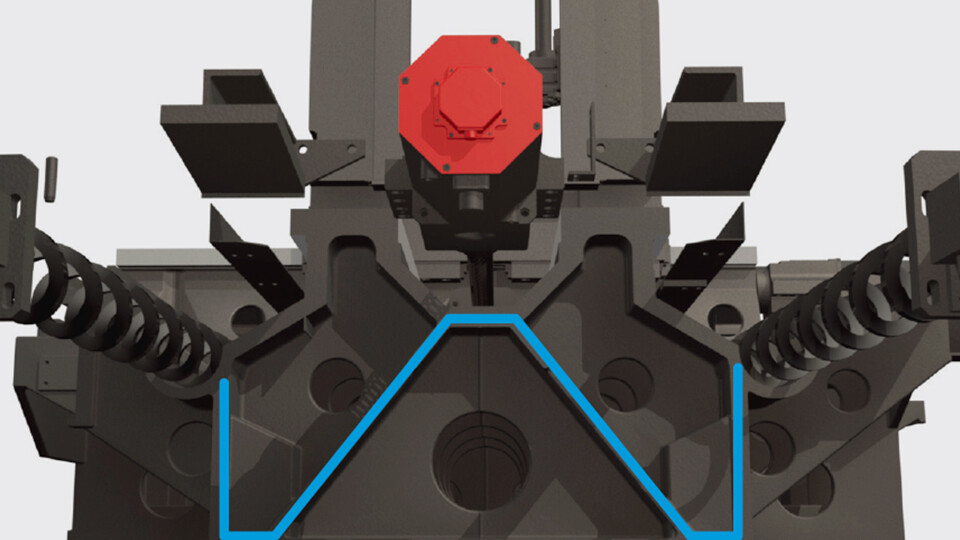

High Rigidity One-Piece Bed

High Rigidity One-Piece Bed

High Productivity and Reliability

Servo-driven Automatic Tool Changer (ATC)

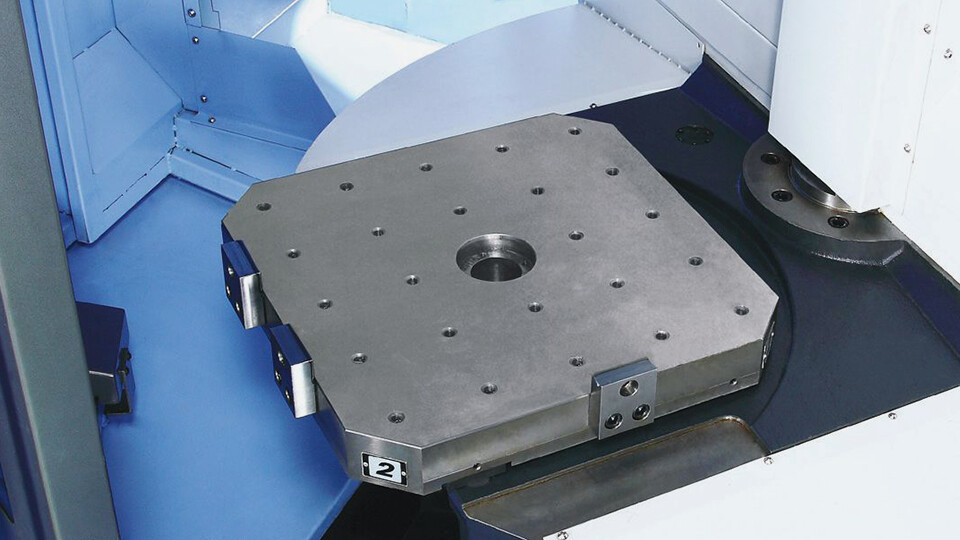

Automatic Pallet Changer (APC)


High Productivity and Reliability

User-Friendly Functions

User-Friendly Functions

Simple and Convenient Operator Panel

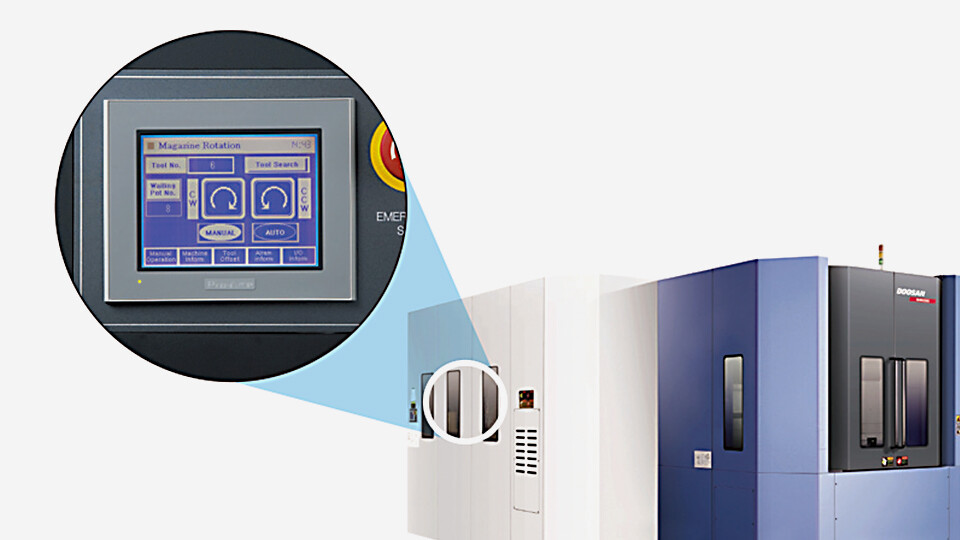

ATC screen panel

Anti-lock door device


Product Specifications

modelNHM 5000NHM 6300NHM 8000
TRAVELS
X-Axis Travel Distance880mm1050mm1400mm
Y-Axis Travel Distance700mm850mm1050mm
Z-Axis Travel Distance850mm1000mm1200mm
FEED RATES
X-Axis Rapid Traverse30m/min30m/min24m/min
Y-Axis Rapid Traverse30m/min30m/min24m/min
Z-Axis Rapid Traverse30m/min30m/min24m/min
MAIN SPINDLE
Max. Spindle Speed6000{8000}r/min6000{8000}r/min6000{8000}r/min
Max. Spindle Power25/15{35/22}kw35/22kw35/22kw
Max. Spindle Torque1034{1444}N·m1732{1444}N·m1732{1444}N·m
Tool TaperISO #50ISO #50ISO #50
TABLE
Pallet Size500mm*500mm630mm800mm
Maximum Workpiece weight800kg1200kg2000kg
TOOL STORAGE CAPACITY
No. of tool station60ea60ea60ea
DIMENSIONS
Length6055mm6410mm7376mm
Height3330mm3495mm3760mm
Width3670mm3930mm4325mm
Weight18500kg20500kg27000kg
