MY-TURN MTY5165
The MTY series is a CNC turning and milling composite machine designed for high-volume production, focusing on rapid manufacturing while ensuring minimal tolerances. Its modular design allows for five different configurations, enabling users to choose the model best suited to their needs.

MY-TURN MTY5165
Dual Turret, Dual Y-axis CNC Turning and Milling Machine

The MTY series is a CNC turning and milling composite machine designed for high-volume production, focusing on rapid manufacturing while ensuring minimal tolerances. Its modular design allows for five different configurations, enabling users to choose the model best suited to their needs.

Easy to Operate

Easy to

Operate

High Productivity

High

Productivity

Excellent Machining Capability

Excellent

Machining

Capability

Easy Maintenance

Easy

Maintenance

Highlights

详情(两个BMT55 16刀位动力刀塔)@1x

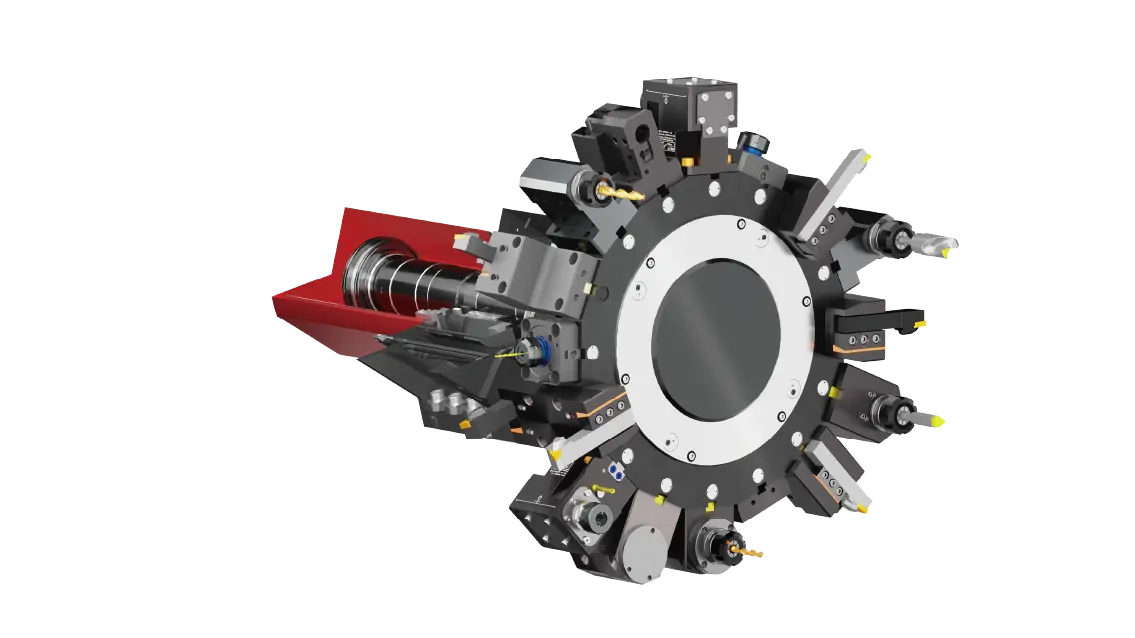

This machine is equipped with two BMT55 16-tool position power turrets, allowing users to load up to 64 tools. With 3.7/5.5KW of power, 17.7/23.6 Nm of torque, and a spindle speed of 6000 RPM, it significantly improves milling efficiency and effectively reduces processing time.
The MTY is equipped with dual turrets, but the CNC controller features three programming channels, allowing for the simultaneous execution of three programs, each with independent compensation. The sub-spindle (X3 and Z3 axes) can perform simultaneous composite machining with the upper and lower turrets in the third channel of the CNC. In other words, by using three tools simultaneously for overlapping machining, with each tool positioned separately in the upper and lower turrets, machining time can be significantly reduced.

详情3@1x

详情2@1x

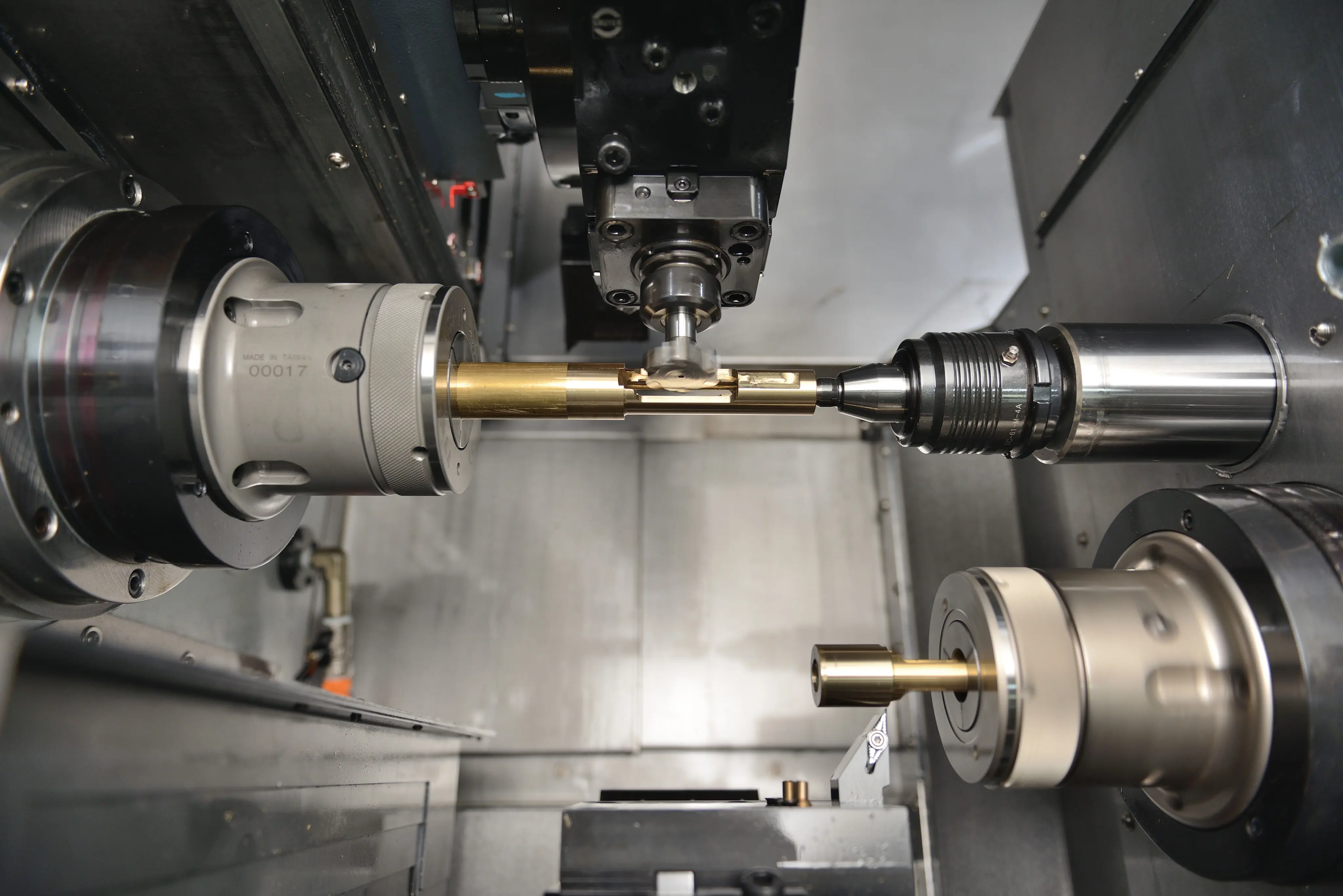

This turning center has an option to mount the tailstock on the sub-spindle body. This configuration makes it possible to perform machining between the main spindle and the tailstock, while simultaneously performing normal machining in the sub-spindle, as shown in the photo.

Product Specifications


model51A65A51B65B51C65D51D65D51E65E
CAPACITY
Chuck size6inch8inch6inch8inch6inch8inch6inch8inch6inch8inch
Max. Turning Diameter180mm180mm180mm180mm180mm180mm180mm180mm180mm180mm
TRAVELS
X1-Axis Travel Distance185.6mm185.6mm185.6mm185.6mm185.6mm185.6mm185.6mm185.6mm185.6mm185.6mm
X2-Axis Travel Distance175mm175mm175mm175mm175mm175mm175mm175mm175mm175mm
X3-Axis Travel Distance--145mm145mm--145mm145mm145mm145mm
Z1-Axis Travel Distance600mm600mm600mm600mm600mm600mm600mm600mm600mm600mm
Z2-Axis Travel Distance600mm600mm600mm600mm600mm600mm600mm600mm600mm600mm
Z3-Axis Travel Distance590mm590mm590mm590mm590mm590mm590mm590mm590mm590mm
Y1-Axis Travel Distance.±45±45±45±45±45±45±45±45±45±45
Y2-Axis Travel Distance----±45±45±45±45±45±45
X1-Axis Rapid Traverse24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min
X2-Axis Rapid Traverse24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min
X3-Axis Rapid Traverse24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min24mm/min
Z1-Axis Rapid Traverse36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min
Z2-Axis Rapid Traverse36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min
Z3-Axis Rapid Traverse36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min36mm/min
Y1-Axis Rapid Traverse18mm/min18mm/min18mm/min18mm/min18mm/min18mm/min18mm/min18mm/min18mm/min18mm/min
Y2-Axis Rapid Traverse----18mm/min18mm/min18mm/min18mm/min18mm/min18mm/min
MAIN SPINDLE
Max. Spindle Speed5500r/min4000r/min5500r/min4000r/min5500r/min4000r/min5500r/min4000r/min5500r/min4000r/min
Max. Spindle Power7.5/11kw7.5/11kw7.5/11kw7.5/11kw7.5/11kw7.5/11kw7.5/11kw7.5/11kw7.5/11kw7.5/11kw
SUB SPINDLE
Chuck size6inch6inch6inch6inch6inch6inch6inch6inch6inch6inch
Max. Spindle Speed6000r/min6000r/min6000r/min6000r/min6000r/min6000r/min6000r/min6000r/min6000r/min6000r/min
Max. Spindle Power5.5/7.5kw5.5/7.5kw5.5/7.5kw5.5/7.5kw5.5/7.5kw5.5/7.5kw5.5/7.5kw5.5/7.5kw5.5/7.5kw5.5/7.5kw
TURRET
No. of tool station16ea16ea16ea16ea16ea16ea16ea16ea16ea16ea
Rotary Tool r/min6000r/min6000r/min6000r/min6000r/min6000r/min6000r/min6000r/min6000r/min6000r/min6000r/min
DIMENSIONS









Length4135mm4135mm4135mm4135mm4135mm4135mm4135mm4135mm4135mm4135mm
Height2175mm2175mm2175mm2175mm2175mm2175mm2175mm2175mm2175mm2175mm
Width3195mm3195mm3195mm3195mm3195mm3195mm3195mm3195mm3195mm3195mm
