  • ED600C

›

ED600C
High-Precision Die Sinker EDM Machines by EXCETEK
EXCETEK offers advanced die sinker EDM machines designed for industries such as aerospace, automotive, and electronics. Our EDM die sinking machines are available in CNC and ZNC Series, ensuring precision, efficiency, and reliability.

ED600C

High-Precision Die Sinker EDM Machines by EXCETEK

EXCETEK offers advanced die sinker EDM machines designed for industries such as aerospace, automotive, and electronics. Our EDM die sinking machines are available in CNC and ZNC Series, ensuring precision, efficiency, and reliability.

Easy to Operate

Easy to

Operate

High Productivity

High

Productivity

Excellent Machining Capability

Excellent

Machining

Capability

Easy Maintenance

Easy

Maintenance

Highlights



High positioning accuracy linear grating ruler

Roller linear guides are 1.7 times more rigid than ball bearing guides.

High-resolution AC servo motor stage with a hardness of HRC50.

High-rigidity mechanical frame design optimized through finite element analysis.

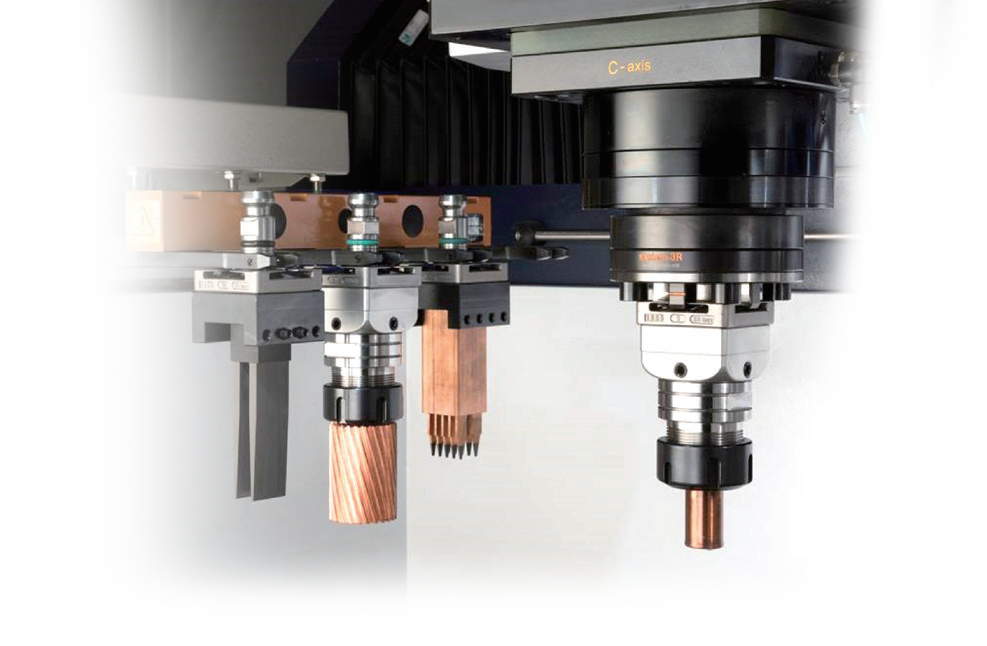

4 & 6 optional automatic electrode changers / 16 & 20 robot automatic electrode changers (optional) with automatic electrode misalignment compensation function

Robot Automatic Electrode Changing System

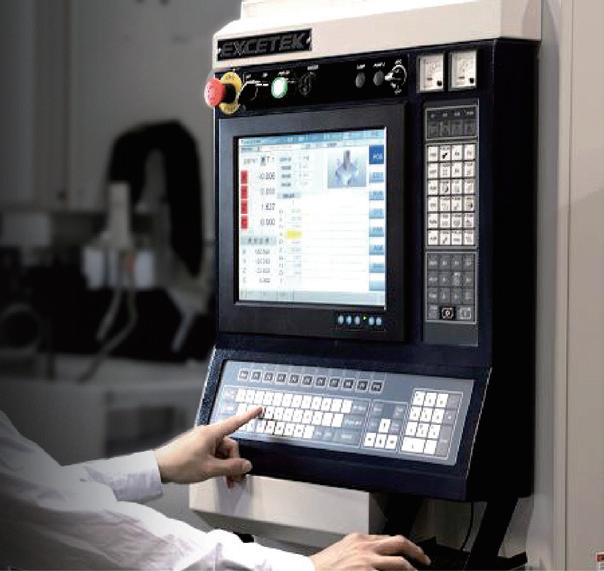

User-friendly interface

Product Specifications


modelED400CED600CED800C
Specification
X/Y axis travel400 x 300 mm650 x 400 mm800 x 600 mm
Z-axis travel350 mm400 mm500 mm
worktable700 x 400 mm1000 x 600 mm1200 x 700 mm
Maximum workpiece size850 x 580 mm1290 x 700 mm1600 x 1000 x 500 mm
Maximum workpiece weight1000 kg300 kg4000 kg
Maximum electrode weight50 kg50 kg350 kg
Machine weight2800 kg3900 kg5000 kg
distance from machine head to work table surface2344 x 2110 x 2410 mm300 ~ 700420 ~ 920
Distance from electrode head to worktable300 ~ 650--
capacity450 L1200 L1500 L
net weight350 kg350 kg450 kg
Oil filter screen number3 / pcs4 / pcs4 / pcs
AreaBuilt-in mm2020 x 530 x 1060 mm-
