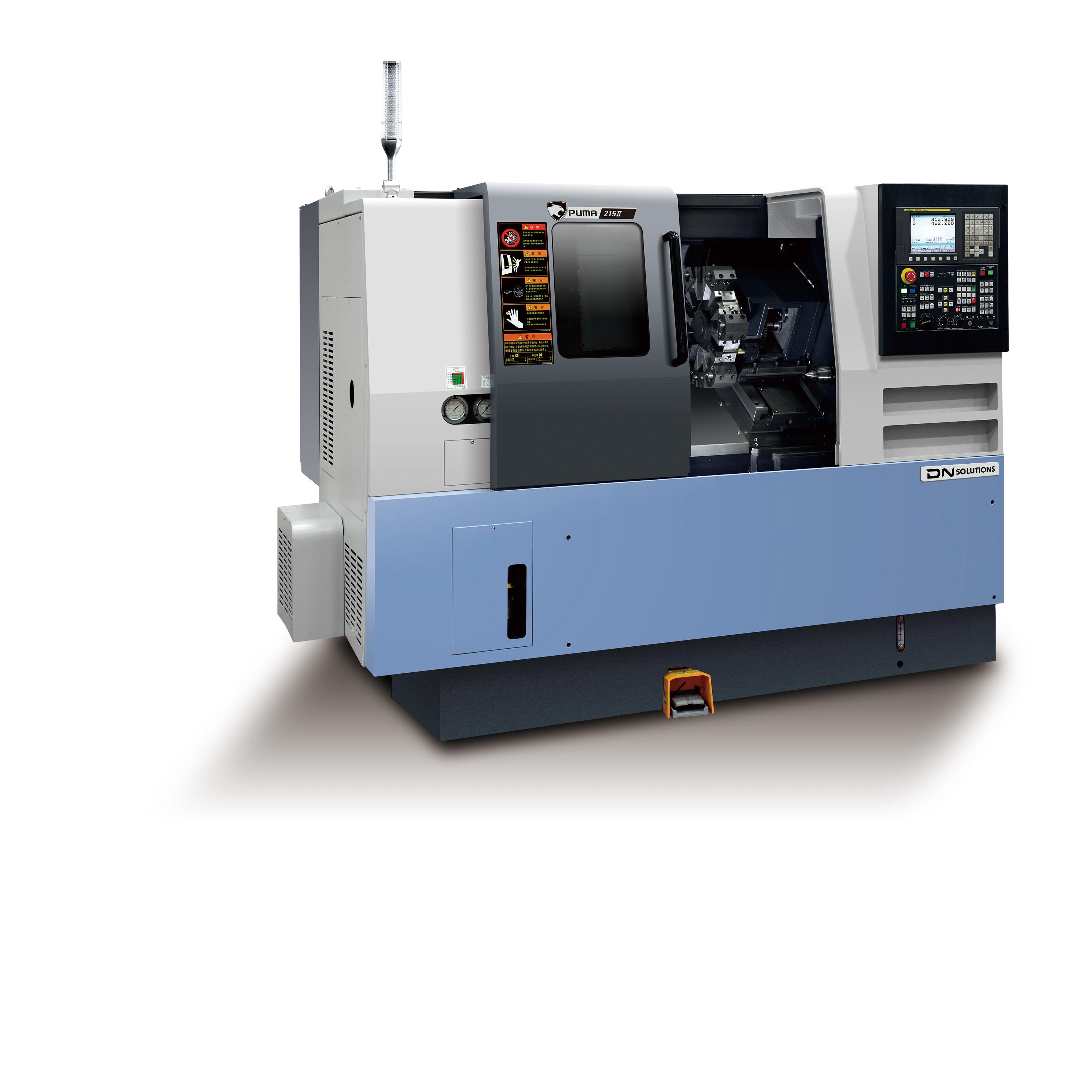

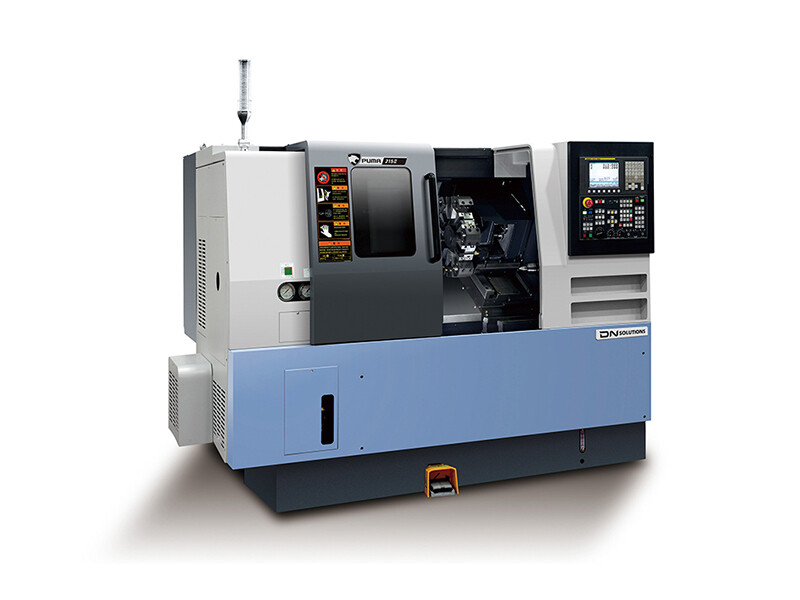

PUMA 215
Second-generation economical and high-efficiency CNC lathe. This second-generation economical and high-efficiency CNC lathe features a hardened rail structure, high rigidity, and high stability.

PUMA 215Ⅱ series(China)

Second-generation economical and high-efficiency CNC lathe

The second-generation economical and high-efficiency CNC lathe features a hardened rail structure, high rigidity, and high stability.

Easy to Operate

Easy to

Operate

High Productivity

High

Productivity

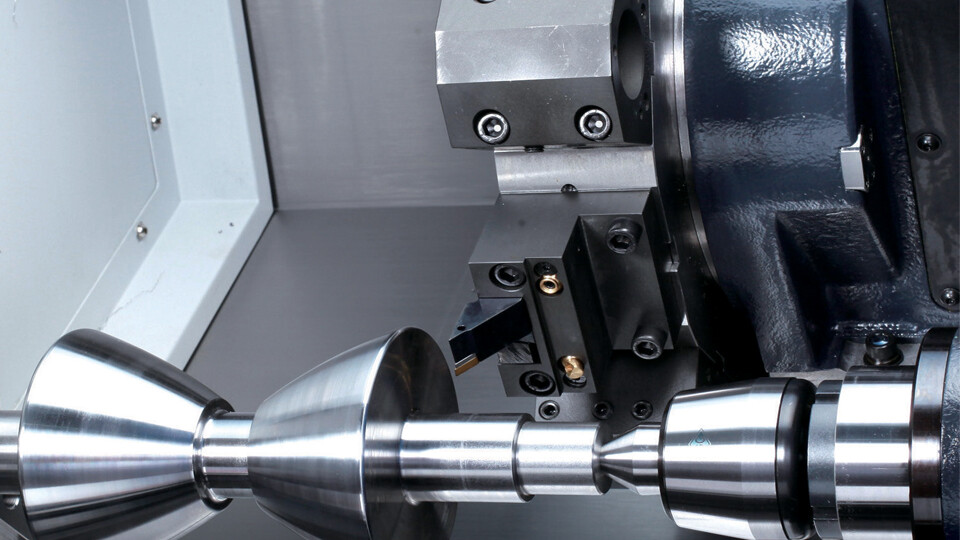

Excellent Machining Capability

Excellent

Machining

Capability

Easy Maintenance

Easy

Maintenance

Highlights

详情(操作便利性以及安全性提高)

Improved ease of use and security


Equipped with an 8-inch chuck and a full-axis hardened rail structure.

详情(配备8寸卡盘,全轴硬轨结构)

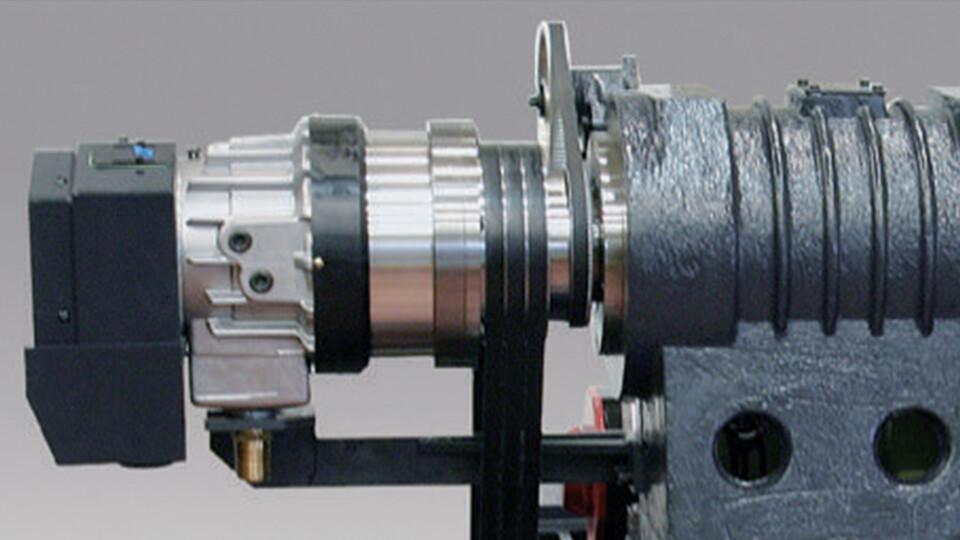

详情(最大主轴电机功率18.5kw,全面提高了产品的稳定性和可靠性。)

The maximum spindle motor power is 18.5kw, which comprehensively improves the stability and reliability of the product.

Product Specifications


modelPUMA 215
CAPACITY
Chuck size8inch
Max. Turning Diameter270mm
Max. Turning Length522mm
TRAVELS
X-Axis Rapid Traverse16m/min
Z-Axis Rapid Traverse20m/min
X-Axis Travel Distance160mm
Z-Axis Travel Distance530mm
MAIN SPINDLE
Max. Spindle Speed4500r/min
Max. Spindle Power18.5/15kw
Max. Spindle Torque156N·m
DIMENSIONS
Length2386mm
Height1650mm
Width1595mm
Weight3700kg
