In the aerospace, energy, and precision manufacturing industries, impellers, as core components of fluid machinery, directly determine the operational efficiency and stability of the entire system through their machining accuracy. However, the complex curved geometry, thin-walled structure, and stringent tolerance requirements of impellers have long held a prestigious position in the machining field. Facing this challenge, DN Solutions' (formerly Doosan) DVF five-axis machining center series, with its superior dynamic accuracy, thermal stability, and automation adaptability, is redefining the efficiency and quality standards of impeller machining for the global manufacturing industry.

一. Why is five-axis technology required for impeller machining?

Traditional three-axis machining centers often fall short when dealing with complex parts like impellers. Due to the twisting and overlapping of the blades, three-axis machining not only requires multiple clamping operations and the fabrication of complex fixtures, but also easily leads to tool interference, resulting in insufficient flow path surface finish. The core advantage of five-axis simultaneous machining lies in the fact that, by adding two rotary axes, the tool can always enter the workpiece at the optimal angle, achieving true "one-time clamping, all done".

DN Solutions' DVF series was designed for this purpose. This series of machines can simultaneously complete turning, milling, and drilling operations on a single machine, completely avoiding repetitive positioning errors caused by multiple clamping operations. For impeller machining, this translates to smooth blade profile transitions and precise control of flow channel dimensions.

二、DN Solutions DVF Series: Designed for Complex Surfaces

The DVF series, DN Solutions' flagship product, has evolved into a powerful family, including the DVF 4000, 5000, 6500, 8000, and the DVF 8000T with turning capabilities. This series offers highly targeted solutions for different impeller sizes and material requirements.

1. Ultimate thermal stability and precise control

Impeller machining is typically a long-term, continuous process, and thermal deformation of the machine tool spindle and structure is the main culprit for accuracy drift. The second-generation models of the DVF series (such as the DVF 6500/8000 2nd Gen.) innovatively introduce Cooling Bar enhanced structural cooling technology. By arranging cooling circuits inside key structural components, combined with a new sealed protective sheet metal, it effectively isolates the influence of internal cutting heat and external environmental heat sources on the machine tool's geometric accuracy.

In terms of spindle design, the DVF series offers high-performance built-in electric spindle options (such as high-torque versions at 15,000 rpm or 20,000 rpm) and comes standard with an oil cooling system. Sensors monitor temperature changes in the spindle head, column, and bed in real time, automatically adjusting parameters to minimize thermal expansion effects, ensuring micron-level machining consistency even when machining dozens or even hundreds of impellers continuously.

2. Core configuration designed for large impellers and high torque.

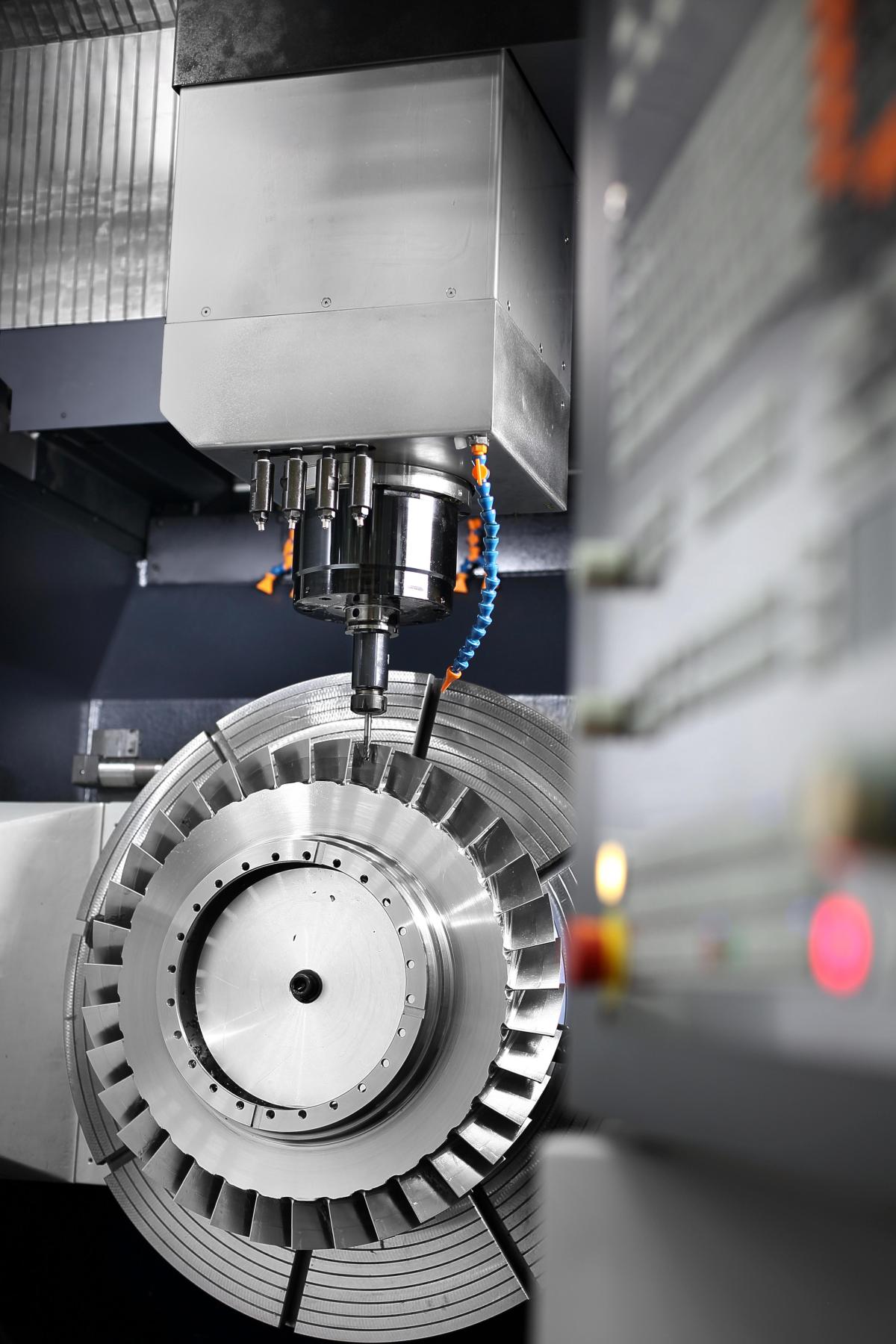

The DVF 8000 series demonstrates powerful machining capabilities for aerospace bladed disks with diameters reaching 950mm or even larger. This model employs dual ball screws and dual motor drives on the Y-axis, dual motor drives on the A-axis, and direct drive technology on the C-axis, providing extremely high rigidity and load-bearing capacity. This structure allows the DVF 8000 to effectively resist enormous cutting forces and suppress cutting vibrations when machining impellers made of high-temperature alloys (such as Inconel and titanium alloys), thereby protecting the integrity of thin-walled blades.

3. The second-generation DVF 5000 achieves a leap in speed and accuracy.

For small and medium-sized precision impellers, the second-generation DVF 5000 sets a new industry benchmark. Its rapid traverse speed is increased to 42 m/min, acceleration reaches 0.4G, and B/C axis rotation speed reaches 25 rpm. More importantly, it can be equipped with the IKC intelligent motion correction system, which can monitor and adjust the rotation axis error in real time during machining. This means that when machining complex blades with extremely high torsion, the tool path can perfectly conform to the theoretical surface, resulting in a significant improvement in surface roughness.

三、Real-world case studies: From aircraft bladed disks to precision vortex systems

The dominance of the DVF series in the field of impeller machining is not only reflected in the parameter table, but also in specific applications.

In the aerospace field, a customer successfully machined a 950mm diameter aircraft engine bladed disk using the DVF 8000T/50 2nd Generation machine. The material was either SM45C carbon steel or a difficult-to-machine high-temperature alloy. Leveraging the machine tool's powerful five-axis CNC capability, the roughing and finishing of the blade's complex curved surface were completed in a single operation, significantly shortening the manufacturing cycle.

To address the common chip removal challenges in impeller machining, the DVF series comes standard with an advanced MAC self-cleaning chip removal system. The optimized coolant flushing design quickly removes chips accumulated in the flow channels, preventing them from scratching the machined surface. This is crucial for ensuring the aerodynamic performance of the impeller flow channels.

四、Automation: The key to achieving unmanned impeller manufacturing

As the manufacturing industry shifts towards a "less human-intensive" model, the mass production of impellers also faces the challenge of labor shortages. The DN Solutions DVF series incorporates an automation-friendly framework from the outset, enabling seamless integration with various automation solutions.

DVF 5000 + AWC (Automatic Workpiece Exchange System): Suitable for small to medium batch production. By configuring an AWC with 8 or more pallets, the equipment can automatically pick up blanks overnight without human intervention, completing the roughing and semi-finishing of the impeller. The operator can collect the finished product the following morning, achieving highly efficient "virtual shift" production.

DVF 6500/8000 + RPS/LPS (Rotary/Linear Pallet System): For mixed-flow production of large impellers, the RPS or LPS system can automatically schedule different types of impeller blanks. The LPS system, in particular, can be expanded to 80 pallets and features intelligent scheduling. The system can automatically adjust machining tasks based on tool life; if a tool has insufficient remaining material, it will automatically skip the current task and execute other suitable machining programs, greatly improving the reliability and flexibility of unmanned operation.

五、Intelligent control: Lowering the programming barrier

Programming for impeller machining has always been complex. The DVF series is equipped with high-end CNC systems (such as the latest Fanuc 31i-B5, Siemens Sinumerik One, or Heidenhain) that incorporate powerful performance. In particular, through Sinumerik One's digital twin technology, operators can simulate the entire impeller machining process in a virtual environment, check for tool collision risks, and optimize toolpaths. This not only significantly shortens the R&D and prototyping cycle of new impeller products but also reduces reliance on operator experience.
